Crankshaft grinding is difficult because the crank pins do not rotate around the crankshaft's main centerline, they orbit around it in a continuously shifting eccentric path, which means the grinding wheel must track a moving target rather than a fixed circular surface. A CNC Crankshaft Grinding Machine solves this with synchronized axis control that recalculates wheel position thousands of times per revolution, while also managing the deflection risk created by a long, heavy, unevenly loaded shaft. The sections below explain why this process is uniquely demanding, how the machine tracks eccentric pin journals, which crankshaft types need dedicated equipment, and how to select the right machine.

Why Is Crankshaft Grinding So Difficult

Unlike a simple shaft, a crankshaft has multiple pin journals offset from the main rotational axis by a fixed eccentric distance, one for each cylinder the engine or compressor serves. When the crankshaft rotates around its main journal centerline during grinding, each pin journal traces a circular orbit around that centerline rather than staying still. A patent describing crank pin grinding methods notes that the grinding portion of the wheel actually moves in an elliptical orbit relative to the pin during one revolution of the crankshaft, which means grinding conditions such as wheel load and contact speed change continuously throughout the cycle.

This creates several compounding challenges that do not exist in standard cylindrical grinding.

• Constantly shifting contact geometry. The wheel must move radially in coordination with the crankshaft's rotation angle to keep tracking the orbiting pin surface, rather than holding a fixed position.
• Variable grinding resistance. Research on crankpin grinding mechanics has shown that grinding resistance acts in the same direction as the pin's motion at some points in the rotation and in the opposite direction at others, which creates load fluctuations that can affect accuracy if not compensated for.
• Long, slender, unevenly loaded shafts. Crankshafts are often long relative to their diameter and carry uneven mass distribution from the counterweights, making them prone to deflection under grinding force and their own weight.
• Multiple critical surfaces on one part. Main journals, pin journals, and sometimes thrust faces all need to be ground accurately relative to each other on the same part.
• High consequence of error. A crankshaft that is out of tolerance can cause vibration, bearing wear, or engine failure, so the acceptable margin for error is extremely small relative to the size and mass of the part.

These factors are why crankshaft grinding requires purpose-built machines rather than a standard cylindrical grinder adapted for the job.

How Do CNC Crankshaft Grinding Machines Polish Eccentric Pin Journals

To grind a pin journal that orbits around the main centerline, a CNC crankshaft grinder coordinates two axes in real time: a C-axis that rotates the crankshaft and an X-axis that moves the grinding wheel carriage radially in and out. Academic research on crankshaft pin journal grinding, published in the peer-reviewed journal Sensors, describes this as oscillating grinding, where the crankshaft is driven by the C-axis around the center of the main journal while the pin journals rotate around that same center, and the grinding wheel performs a reciprocating chasing motion along the X-axis to follow the pin.

According to the same research, the practical positioning accuracy of both the C-axis and X-axis must closely match the theoretical motion control equations for the result to be a true circular pin journal profile, since any deviation between the commanded and actual axis position introduces a contour error directly into the ground surface. This is why crankshaft grinders rely on high-resolution encoders and tightly tuned servo control rather than the simpler positioning systems found on standard OD grinders.

What Types of Crankshafts Require Specialized Grinding Machines

Not all crankshafts present the same grinding challenge, and machine specification varies significantly based on the crankshaft's size, weight, and configuration. The table below outlines common categories and their grinding considerations.

Heavy crankshafts present a particular engineering problem. A grinding machine patent addressing pin grinding on heavy crankshafts explains that deflection becomes a significant issue once the crankshaft exceeds a certain length and weight, and describes a relief arrangement that applies a constant counteracting force to the crankshaft during grinding specifically to manage this deflection without attaching extra parts to the shaft itself. This illustrates why heavy-duty crankshaft grinders are built with dedicated support and relief systems that automotive-scale machines typically do not need.

How Do You Avoid Deflection and Ensure Precision in Crankshaft Grinding

Deflection is one of the most common sources of error in crankshaft grinding, since the shaft is supported only at its ends or at intermediate steady rests while a grinding force is applied off-center. The following practices and machine features address this directly.

1. Steady rests and follower supports. Adjustable steady rests positioned near the pin being ground reduce the unsupported span of the crankshaft and limit deflection under cutting force.
2. Counterbalancing or relief systems. On heavy crankshafts, mechanical relief arrangements apply a counteracting force to offset the shaft's own weight, preventing sag that would otherwise distort the ground journal.
3. Optimized grinding sequence. Grinding journals in a planned order, rather than sequentially down the shaft, can balance forces and reduce cumulative deflection as material is removed.
4. Controlled infeed rates. Lighter, more frequent passes near final size reduce peak grinding force compared with a single heavy cut, lowering momentary deflection.
5. Rigid machine bed and headstock. A heavy, well-damped machine structure resists its own deflection under load, which compounds with any shaft deflection if the machine itself is not sufficiently rigid.
6. Real-time motion accuracy. Because pin journal grinding depends on precise C-axis and X-axis coordination, servo tuning and encoder resolution directly affect whether the commanded tool path matches the actual ground profile.
7. Thermal control. Coolant flow and consistent ambient conditions limit thermal expansion of the long crankshaft body, which would otherwise shift journal position mid-cycle.

Addressing deflection is rarely a single fix. It typically requires the right combination of machine rigidity, workholding support, and a grinding sequence suited to the specific crankshaft's length and mass distribution.

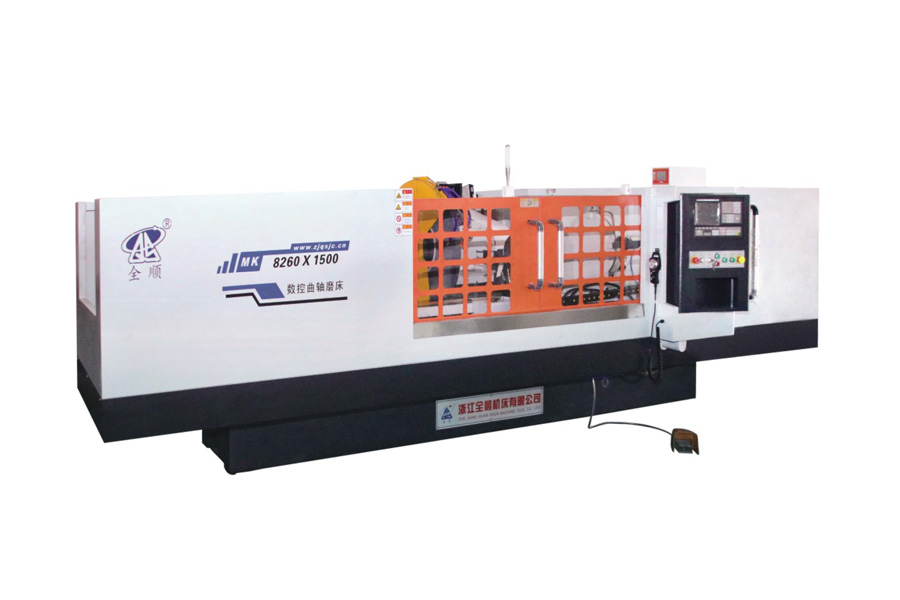

How to Choose the Right CNC Crankshaft Grinding Machine

Selecting a Crankshaft Grinding Machine should be based on the size, weight, and tolerance profile of the crankshafts you expect to produce, not just the largest part in your current order book. Consider the following factors.

• Maximum crankshaft length and swing. Confirm the machine bed length and swing diameter cover your largest expected crankshaft with margin for future part growth.
• Number of pin and main journals supported. Verify the C-axis and X-axis control can manage your crankshaft's journal count and stroke configuration without excessive cycle time.
• Deflection management features. For longer or heavier crankshafts, check whether the machine includes steady rests, relief systems, or other support designed to counteract sag during grinding.
• Servo and encoder resolution. Higher resolution motion control directly improves pin journal roundness, since the axis positioning must closely track the theoretical orbit equation.
• Wheel and dressing system. Confirm the wheel size, type, and automatic dressing cycle suit the journal diameters and surface finish your crankshafts require.
• Production volume and changeover needs. High-mix, lower-volume shops benefit from flexible CNC programming for different stroke configurations, while dedicated production lines may favor optimized fixed cycles.
• Manufacturer support and training. Crankshaft grinders are complex machines, so ongoing access to spare parts, calibration support, and operator training matters over the equipment's service life.
